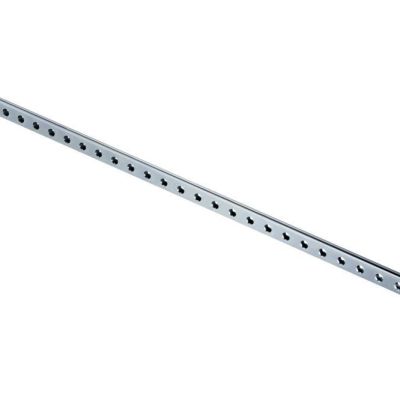

Pusharm 700mm; perforated galvanized, with packaging

Pusharm 700mm; perforated glavanized, with packaging

MSRP $19.60
IMAPP $19.60

  • Extended door arm for use on garage doors with track radius greater than 15" (e.g. 20" radius or 32" radius)
  • Compatible with all SOMMER garage door operators, including Synoris, Direct Drive, evo+, pro+, and Duo Vision
  • May be used with or without SOMMER curved door arm, depending on door bracket location and location of struts, etc.
  • U-shaped profile for sandwiching curved door arm
  • May be used with extreme breakaway high lift
  • Not recommended for use with standard breakaway high lift greater than 18"



Specifications:

  • Length: 28.25"
  • Width: 0.325"
  • Height: 0.875"
  • Perforations size: 0.375"
  • Perforations spacing: 0.978" on center
  • Number of perforations: 29
  • Steel thickness: 0.125"
  • Inside dimension: 0.25"
  • Material: galvanized steel
  • Color: galvanized



Packaging and Shipping

  • Individual items:
    • Packaging: sealed plastic bag
    • Package size: 29.5"x4"x0.5"
    • Package weight: 0.8 lb.
  • Cases:
    • Items per case: 50
    • Case size: 7"x6"x31.5"
    • Case weight: 42 lbs.
  • Pallets:
    • Cases per pallet: 30
    • Items per pallet: 1,500
    • Pallet size: 32"x48"x36"
    • Pallet weight: 1,311 lbs.
  • Items boxed for individual shipment
    • Box size: 2"x4"x32"
    • Box shipping weight: 1.3 lbs.
    • Boxes per pallet: 180
    • Pallet size: 32"x48"x36"
    • Pallet weight: 285 lbs.



Product Information:

  • EAN barcode: 4 015862 877390
  • SOMMER part number: YS13449-00001
  • Included in the package: 1x YS10570-00001
  • Country of origen: Germany
  • Warranty: 2 years
