ceiling bracket set with bolts

MSRP $12
IMAPP $12

Items included in this kit:

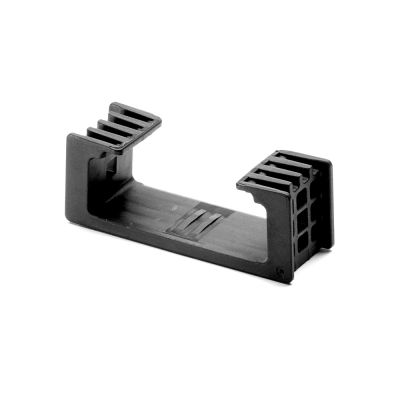

• 1x YS12614-00001 -- Ceiling bracket Synoris

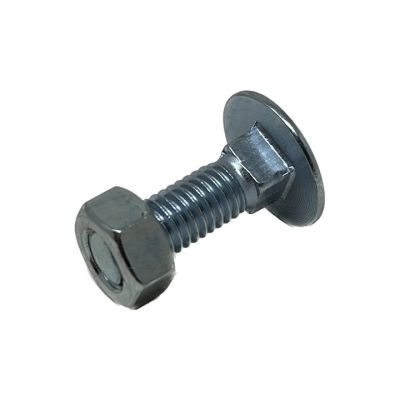

• 2x Y10036 -- Carriage bolt with nut, ceiling bracket Synoris

Product Features"

• Ceiling bracket for hanging the operator c-rail from the ceiling.
• Can be hung anywhere between connecting sleeves and the end of the rail
  • Maximum 24” from end of the rail to the bolt for back hang
• Can also be used for center hanging long rails or reinforcing rails on heavy doors.
• Compatible with Synoris, Direct Drive, Duo Vision, Sprint, and Marathon operators.
• Not compatible with evo+ and pro+ operators except over the connecting sleeve.

Technical Specifications:

• Assembled size: 4.5”x1.5”x1.75”
• Brand: SOMMER
• Materials: fiber-reinforced plastic
• For c-rail up to 3”x1.3125” outside dimension
• Color: black RAL 9005

Shipping information:

• Unit: piece
• Unit size: 4.5”x1.5”x1.75”
• Unit weight: 0.1125 lb.
• Shipping size single unit: 6”x6”x9”
• Shipping weight single unit: 0.27 lb.
• Items per case: 84
• Case size: 15.25”x5”x11.5”
• Case weight: 24 lbs.
• Cases per pallet: 48
• Pallet size: 32”x48”x35”
• Pallet weight: 1,202 lbs.
• Country of origin: Germany

Warranty:

• 2 years from date of purchase
