GIGAline rail unit, alu blank travel length 3060 mm, incl. mounting material

MSRP $1,210
IMAPP $1,210

Properties

Areas of application in private/industrial areas as well as in collective/underground car parks. The rail unit is versatile. It can be easily shortened or extended.

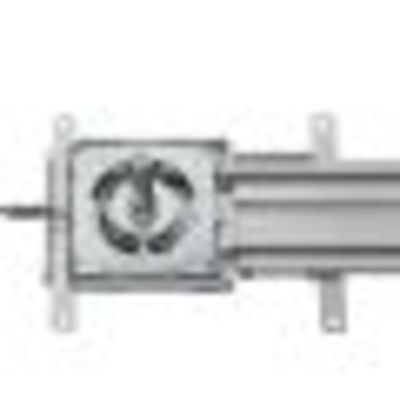

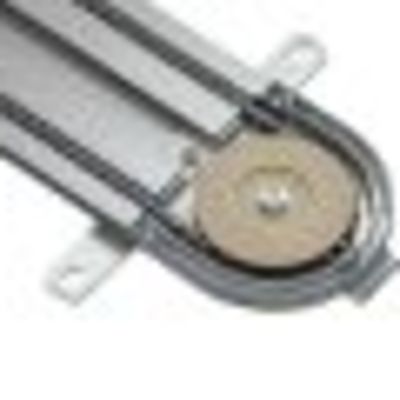

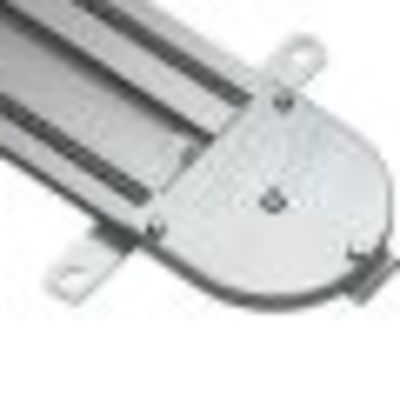

The 3-part rail unit consists of very flat extruded aluminum profiles that are connected to one another. SOMMER uses a tear-resistant steel roller chain that runs very quietly in special plastic guides and has proven itself under extreme loads. The system has a spring-loaded chain tension to prevent external influences.

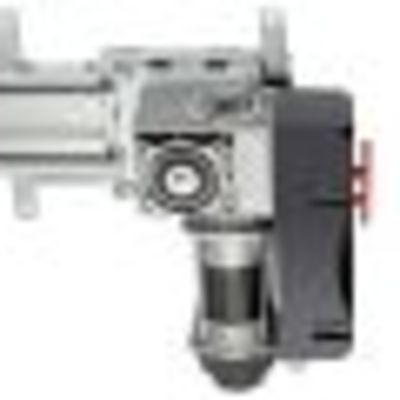

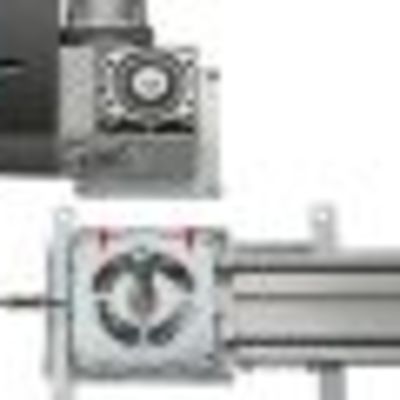

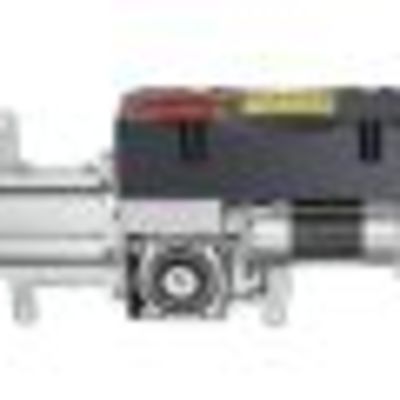

• The rail is driven by an industrial door drive with a frequency converter
• Solid extruded aluminum guide rail
• Installation height approx. 20 mm for low headroom
• Chain and motor spring-loaded
• Suitable for GIGAsedo drives with FU
• The tear-resistant steel roller chain is suitable for extreme loads

Product Safety Information

Manufacturer

SOMMER Antriebs- und Funktechnik GmbH

Hans-Böckler-Straße 27

73230 Kirchheim unter Teck

DE

https://www.sommer.eu

Product Safety

Further information in the manual, skilled mechanic required for installation.
