Drums M216-3350 VL pair
(this item price includes a 30% import surcharge)

MSRP $113
IMAPP $113

​About this item:

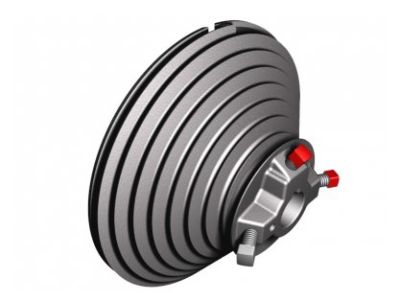

• Cast aluminum cable drum pair
• For  vertical lift garage doors up to 12' 9" high
• Includes a 3rd set screw for cable fixation

Specifiations:

• Brand: DOCO
• Unit: pair
• Unit size: 8.46"x8.46"x3.15"
• Materials: cast aluminum drums and steel set screws
• Color: silver
• Maximum door weight: 850 lbs.
• Maximum door height with 1/2 safety wind: 12' 9"
• Maximum door height with 2 safety sinds: 7' 3"
• Minimum offset from wall: 5"
• Maximum torque bolts: 20 Nm
• Maximum torque set screws: 25 Nm
• Maximum cable diameter: 3/16"
• Shaft diameter: 1"
• Markings: red = left; black = right

Shipping Information:

• Unit: pair
• Unit size: 8.46"x8.46"x3.15" (each cable drum)
• Unit weight: 3.53 lbs.
• Shipping size single item: 12"x12"x9"
• Shipping weight single item: 3.79 lbs.
• Items per case: 9
• Case weight: 36.11 lbs.
• Items per pallet: 108
• Cases per pallet: 12
• Pallet wieght: 485 lbs.
• Country of origin: China

Warranty:

• 2 years from date of installation
