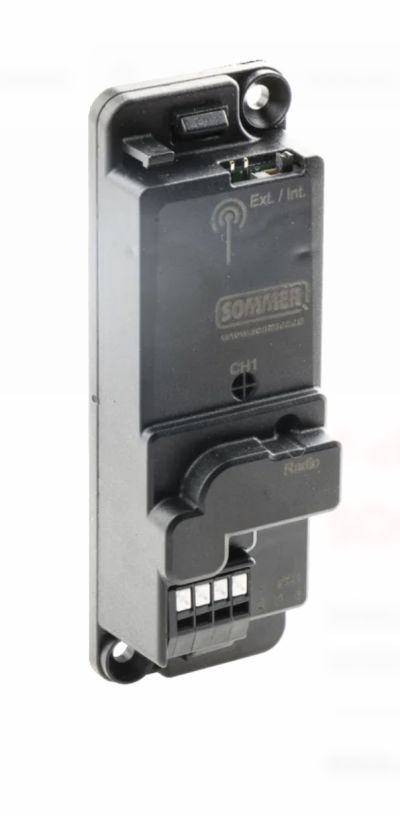

SOMcom1 radio receiver; 922.5 MHz NEUTRAL version ML; black 1-ch 40 memory locations
(This item price includes an 11% import surcharge)

MSRP $84
IMAPP $84

Features:

• Hopping function for extended range
• Antenna capable
• 40-slot memory

Compatibility:

• Compatible with external antenna from SOMMEr (proprietary plug)
• Not compatible with Memo
• Compatible with all SOMloq 2 radio devices from SOMMER in 922.5 MHz, including handheld transmitters, code keypads, fingerprint scanners, wireless wall buttons, etc.
• Compatible with most garage door operators and gate operators
  • Must accept floating relay (dry contact) commands
  • Must be able to operate with single button (pulse mode) controls

Technical Details:

• Radio system: SOMloq2
• Radio frequency: 922.5 MHz
• Radio encryption: 128-bit
• Code type: rolling code
• Memory capacity: 40 slots
• Programming mode: manual with teach-in by button or by radio with SOMlink
• Operating modes:
  • Pulse mode standard with radio button
  • Defined ON (requires SOMlink for programming)
  • Defined OFF (requires SOMlink for programming)
• Output channels: 1
• Power supply voltage: 12-24 Volts DC or 12-24 Volts AC 50-60 Hz
• Max power consumption:
  • 12 V AC: 70 mA
  • 24 V AC: 45 mA
  • 12 V DC: 45 mA
  • 24 V DC: 25 mA
• Relay output: dry contact
• Switching capacity: 1 Amp AC or 30 Volts DC
• Temperature range: -4 F to 149 F
• Assembled item size: 4.17" x 1.42" x 0.98"
• Assembled item weight: 0.009 lb.

Warranty:

• 2 years from date of installation to original owner
